8K HDMI Cable Buying Guide: 48 Gbps, Bandwidth, Length & What to Spec
Technology & Specs October 23, 2026
An 8K HDMI® cable is not a single product. It is a family of assemblies that differ in bandwidth, conductor size, connector type, jacket and length — and the one you need for a 1 m rack link is the wrong cable for a 100 m venue run. This guide explains the 48 Gbps tier, what resolutions it actually carries, when copper stops working and fiber begins, and exactly what to tell your factory so the part you order is the part that passes test on site.
What 48 Gbps actually means
The 48 Gbps figure is the total maximum signaling bandwidth across HDMI® four lanes — roughly 42.67 Gbps of usable video data after overhead. That headroom is what enables uncompressed 8K, high-refresh 4K, and simultaneous lossless audio. A cable sold only as “8K” without a rated bandwidth is not meaningful: for a commercial project, always specify the Gbps, not the marketing word. A 48 Gbps assembly supports all HDMI® 2.1-era features, including eARC, VRR, ALLM and Dynamic HDR.
A 48 Gbps rating is also the minimum for the latest certified tier, but the printed category name and the certification label are not the same thing — see the certification section below and ask the factory to confirm which exact part numbers carry official test status.
Resolutions and refresh a 48 Gbps cable carries
Bandwidth decides the maximum combination of resolution, refresh, color depth and chroma. The table below lists the common Pro AV targets at the 48 Gbps tier. Going beyond 8K60 uncompressed or adding 4K at very high refresh pushes you toward the newer 96 Gbps tier (covered in a separate guide).
| Signal target | At 48 Gbps (4:4:4, 8-10-bit) | Notes |
|---|---|---|
| 8K | 60 Hz (DSC for some formats) | Large venue LED / future-proofing |
| 4K | 120 Hz | High-refresh control, gaming displays |
| 5K/6K | 60–120 Hz | Specialized display walls |
| 4K HDR | 60–120 Hz with eARC | Boardroom, signage, broadcast |
| Color / HDR | 10-bit, Dynamic HDR, BT.2020 | HDR workflows |
| Data | 48 Gbps, VRR, ALLM, QFT | Fast-switch / tear-free |

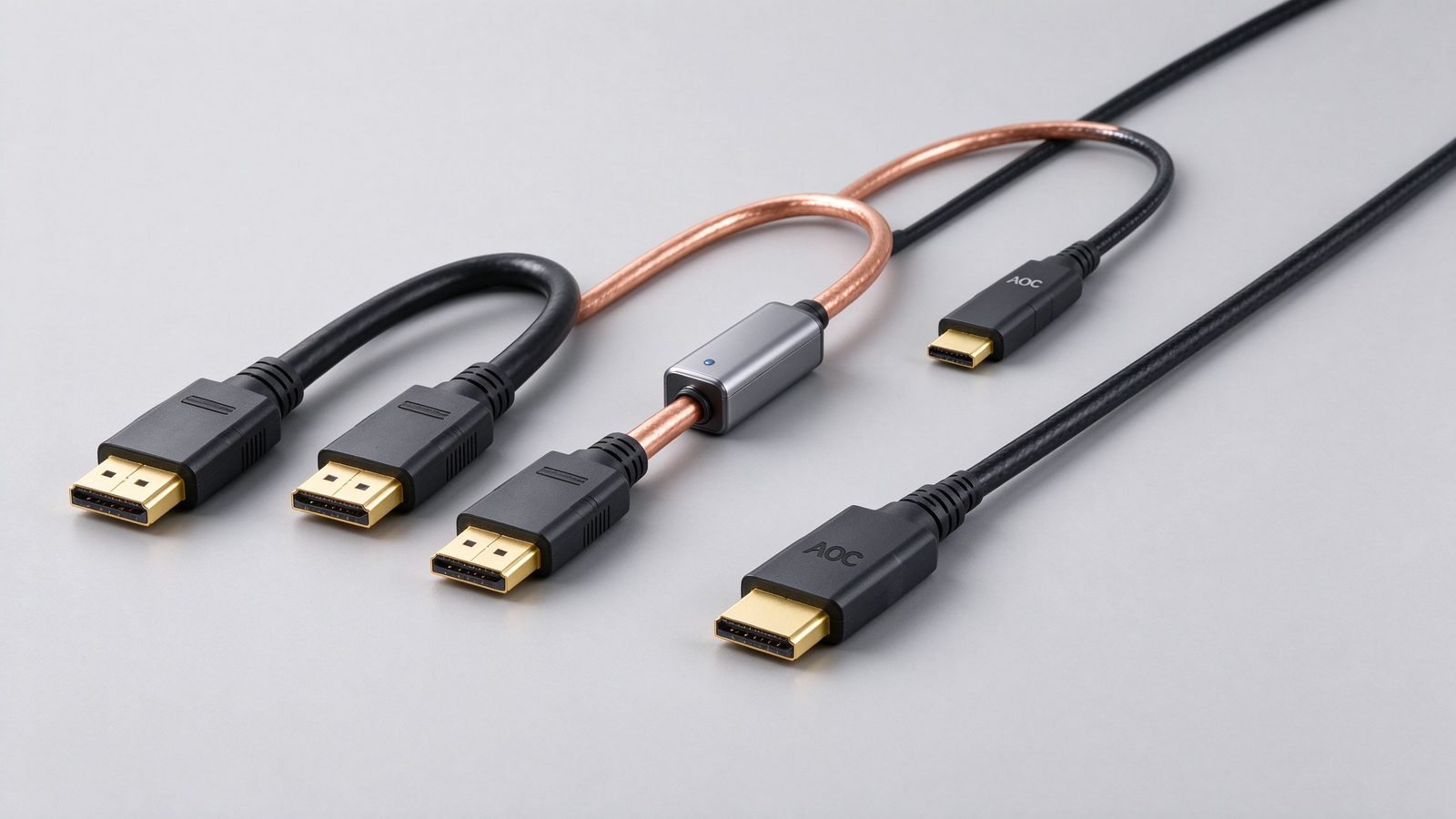

Length: copper vs active vs fiber
Bandwidth and length are a trade-off. The same 48 Gbps signal that is effortless on a short, thick copper cable becomes marginal at distance as high-frequency loss and jitter accumulate. Use the right construction by run length:
| Run length | Recommended construction | Why |
|---|---|---|
| 0.5–3 m | Passive copper (thick, certified) | Short rack/player links, lowest cost |
| 3–7 m | Passive copper / certified short SKU | Desk, in-room, local sources |
| 7–15 m | Active copper or fiber AOC | Marginal passive zone |
| 10–30 m | Fiber AOC preferred | Thin, light, EMI-immune |
| 30–100 m | Fiber AOC (hybrid) | Long in-wall / venue pull |
| 100 m+ | AOC or fiber extender system | Large venues, risers |
Long fiber (AOC) cables are hybrid: fiber carries the video lanes and copper wires carry power, HDMI CEC and eARC. They are directional (source vs display ends) and are pulled by the fiber connector, not the head — a detail that matters for rough-in.
For long projects see our dedicated fiber optic HDMI cable and the long-run fiber AOC guide.
Certification labels: how to verify
HDMI® cables can be marketed under official category names (such as the 48 Gbps Ultra High Speed tier and the newer 96 Gbps Ultra96 tier) only when the specific SKU passes the authorized test center (ATC) program. For retail projects that carry the label, you should be able to:
- See the official certification mark and, on 48 Gbps cables, an anti-counterfeit QR label that you can scan to confirm the SKU and factory.
- Receive the certified part number and, on request, the test record for the length.
- Match the label to the exact length, because long AOC test status can be verified per length rather than across a whole family.
Important for buyers
The tier name on a drawing is not proof of certification. Some projects need only the specification (48 Gbps / 8K), while branded retail that prints the official label must use genuinely tested SKUs. Tell your factory which you need, and ask for the certified part numbers and QR labels before printing packaging. We build both labeled-certified short SKUs and spec-only 48 Gbps assemblies.
What to specify when ordering bulk 8K HDMI
A complete spec removes 90% of RFQ back-and-forth. Provide these in your BOM or drawing:
- Bandwidth & signal: e.g. 48 Gbps, 8K60 / 4K120, eARC, VRR.
- Length and whether each length is certified or spec-only.
- Connector ends: Type-A standard, Micro (Type-D), Type-E automotive, or detachable pull-through for in-wall.
- Jacket: PVC, LSZH (low-smoke), plenum CMP for air-handling spaces, or steel-armored for crush risk.
- Heads: standard, low-profile, micro-pull, screw-lock.
- Quantity / MOQ by length, packaging, private label and any retail box.
- Test data: signal/function test report, eye-diagram and batch labels.
Plenum and armored options, micro/Type-E connectors and the OEM process are covered in the links at the end of this article. You can also browse the full HDMI cable range or see Pro AV integration solutions.
Send us your run length, resolution, connector and jacket requirements and get a factory quote with test data within 24 hours.
Frequently asked questions
Do I need a 48 Gbps cable for 8K?
Uncompressed 8K at 60 Hz and high-refresh 4K at 120 Hz require the 48 Gbps tier. For 1080p or basic 4K60, an 18 Gbps premium cable is sufficient and lower cost. Spec by the resolution and refresh you actually run.
Is an 8K HDMI cable the same as an Ultra High Speed certified cable?
Not automatically. 48 Gbps is the bandwidth specification; the official category name and label are only applied to specific SKUs that pass the authorized test program. Ask the factory to confirm which part numbers are certified and can carry the QR label.
How long can a 48 Gbps HDMI cable be?
Passive copper is reliable to roughly 3 m and up to about 7 m on certified short SKUs. Beyond that, active copper or fiber AOC is recommended; fiber AOC routinely reaches 100 m and can be extended further with a fiber system.
Can I order 8K cables with my own brand and packaging?
Yes. Private-label and retail-boxed 48 Gbps cables are a standard OEM program, typically with MOQ in the hundreds to low thousands per length. OEM labels carry the buyer’s own logo; official tier labels are used only on certified SKUs.
What jacket do I need for in-wall and ceiling runs?
Air-handling (plenum) ceiling spaces generally require CMP-rated plenum cable; riser or concealed non-plenum spaces often use LSZH. Confirm the local code and the run’s air-handling classification with your installer before specifying.
